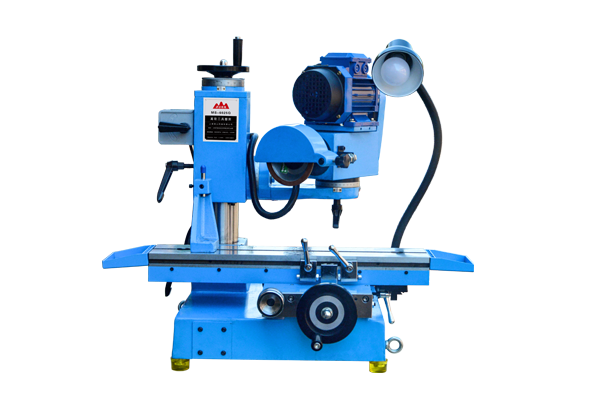

MS-6025Q tool grinder

Date：2023-03-06

Effective diameter of grindable work	200mm
Grindable workpiece inner diameter	10-50mm
Left and right travel of workbench	280mm
Front and rear travel of workbench	150mm
Vertical lifting distance of grinding wheel	250mm
Horizontal rotation angle of grinding wheel	360measure
Grinding head speed	5200RPM
Power of grinding head motor	3/4HP
Total power of machine tool	1HP
Head rest center height	135mm
Effective length of workpieces that can be clamped by head rest	450mm
Table area	130*600mm
Grinding wheel size	1501632mm
Net weight/gross weight	140/160kg
Package size	870×630×630mm
